A Sample
Program
This lecture will focus on a
sample program that was assigned for all students
to execute on the mainframe. This
program is run under the IBM operating
system called OS (as opposed to DOS), which is tailored for large
installations.
Please note that the IBM
mainframe operating system DOS is not related to that
once used on small computers. The
latter, often called “DOS” is really MSDOS,
the Microsoft Disk Operating System.
This lecture contains both code
fragments and annotations on those code fragments.
Code fragments will be presented in the font Courier New (bold), as follows.
SAVE (14,12)
All other material will be in
the standard font Times New Roman, as is this sentence.
The student will recall that
the input to the assembler is not free–form; column placement
is extremely important. Your instructor
discovered this fact when an otherwise correct
program would not assembly correctly.
Column
Conventions in the Assembler Program
The column conventions are as
follows:
Columns 1 – 8 The name or label of the statement or declarative
Column 9 This
must be blank
Columns 10 – 14 The operation: instruction, declarative, or macro
Column 15 This
must be blank
Columns 16 – 71 The operands for the operation.
Any
continuation line must begin in column 16.
Column 72 If
nonblank, the next line is a continuation of this one.
Consider the following example,
taken from the sample program.
PRINTER DCB DDNAME=PRINTER, X
DSORG=PS,
X
DEVD=DA,
X
MACRF=(PM), X
LRECL=133, X
RECFM=FM
The label PRINTER is placed in
columns 1 – 7
The DCB macro is placed in columns 10 – 12
The arguments are placed in
columns 16 – 71, the continuation mark is in column 72.
More on
Column Conventions
Were we to use the COLS command
in the editor, we would see the following
for the first line of the statement above.
PRINTER DCB
DDNAME=PRINTER, X
000000000111111111122222222223333333333444444444455555555556666666666777
123456789012345678901234567890123456789012345678901234567890123456789012

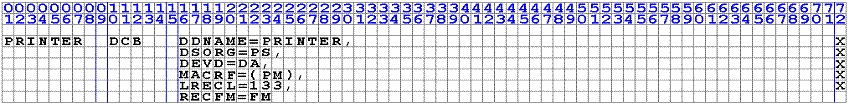

Coding forms
It used to be common practice
to have coding forms with the columns clearly indicated.
On such a form, the DCB statement might appear as follows, except that the form
would
have been used by a human; thus the text would have been hand written.
We shall discuss the meaning
(semantics) of this statement in a later slide.
At the moment, the only point is to emphasize the importance of proper column
alignment.
Column 1
Here are the rules for use of
column 1 in the assembler. Note, that we are not speaking
of the first non–blank entry in a column, but column 1. Consider the following, with
the columns displayed above the operation and operands
0000000001111111111222222
1234567890123456789012345
AR R1,R2 ADD REGISTR R2 TO R1
Note that column 1 contains a
blank. Column 10 is the first non–blank
column.
If column 1 contains an “*”,
the entire line is treated as a comment.
0000000001111111111222222
1234567890123456789012345
* THIS ENTIRE LINE IS A COMMENT
If column 1 contains an
alphabetical character, it is the start of a label. The label
continues from column 1 up to the first blank column or column 9.
0000000001111111111222222
1234567890123456789012345
ADD2 AR R1,R2 Label is ADD2
Some Common
Errors
Consider the following two
examples. The first is correct; the
second is not.
0000000001111111111222222
1234567890123456789012345
AR R1,R2 ADD REGISTR R2 TO R1
This one should work as
advertised. Note that the first blank
space after the expected
operands marks the start of an in–line comment.
Now consider the following.
0000000001111111111222222
1234567890123456789012345
AR R1,R2 ADD
REGISTR R2 TO R1
Here the two characters “AR” are taken as the
label, because the “A” is in column 1.
The assembler attempts to
interpret “R1” as an operation, and fails.
How about
this one, which is also incorrect.
0000000001111111111222222
1234567890123456789012345
AR R1, R2
ADD REGISTR R2 TO R1
Here
the problem is the space after “R1,”. The string “R2” is taken as
starting
the comment field. Because of the space,
it is not an operand.
Comments in
the Style of Java
High–level languages, such as
Java and C++, allow in–line comments.
Consider the following two
examples.
0000000001111111111222222
1234567890123456789012345
AR R1,R2 ADD REGISTR R2 TO R1
0000000001111111111222222
1234567890123456789012345
AR R1,R2 //ADD REGISTR R2 TO R1
In the first example, the
comment is “ADD REGISTR R2 TO R1”.
In the second example, the
comment is “//ADD REGISTR R2 TO R1”;
it just has two extra characters.
It is the blank column that
introduces the comment, not the “//”.
IMPORTANT NOTE: Many job
control statements begin with “//”.
These are NOT comments, but an
essential part of the program.
Job Control
Statements
In order to understand the
structure of the sample program, one must imagine a “batch
job”, which is a sequence of cards submitted to the computer.
Your input file comprises a
sequence of lines of text. Each line of
text should be
viewed as a “card image”, basically eighty characters with some of them blanks.
Here is the job control
language from my submission of the program.
//CSU0003A JOB (ASSY),'ED BOZ',CLASS=A,MSGCLASS=A,
// NOTIFY=&SYSUID,MSGLEVEL=(0,1)
//ASM EXEC PROC=HLLASMCLG
//SYSIN DD *
Each student should employ a
unique job name based on the user ID (mine is obviously
CSU0003). The job name is the seven character User ID with a single letter appended.
It appears that the letter can be arbitrary and need not be changed.
The HLLASMCLG directive seems to direct the assembler to “compile,
load, and go”;
that is, to execute the code generated.
The SYSIN DD* directive indicates that the input for the assembler
will be found
in the lines of text just following.
Assembly Language
Source: Part 1
The first two lines of the code
contain macros, which expand to pre–defined sequences
of code that direct the execution of the assembler.
TITLE 'ED B - FROM SKELETON ASSEMBLER
PROGRAM'
PRINT ON,NODATA,NOGEN
The TITLE macro provides a
title at the top of each page of the listing.
Note the single quotes at the start and end of the text to be displayed.
The PRINT macro specifies the
format of the assembly listing.
ON The
program listing is printed.
NODATA Restricts
the display of the binary machine language equivalent
of each
assembler statement to 16 hexadecimal digits.
NOGEN Suppresses
the generation of the statements to which a macro
will
expand. In general, a macro will expand
into about ten statements.
With this
option, only the macro itself is listed.
We
shall later want to use the GEN option when we study macro writing.
This will allow us to examine the code expansions of our macros.
Assembly
Language Source: Part 2
The
next section of the code includes comments.
Each
comment of this form begins with an “*” in the first column.
While
not required, the use of comments is good programming practice.
This set of comments is about the minimal that is useful.
****************************************************************
*
* PROGRAMMER:
EDWARD BOSWORTH,
* ASSIGNMENT:
FIRST LAB ASSIGNMENT FOR CPSC 3121
* DATE
:
JANUARY 21, 2009
* COMMENTS :
THIS ALLOWS THE STUDENT TO LEAN HOW TO ENTER
* :
A PROGRAM ON THE MAINFRAME AND EXECUTE IT.
*
****************************************************************
Assembly
Language Source: Part 3
An
Equate directive is used to equate one symbol with another. In the code that follows
each occurrence of “R0” will be replaced by “0”, each “R1” by “1”, etc. Use of these
symbols allows register references to become visible in the program listings.
****************************************************************
* REGISTER EQUATES
****************************************************************
R0 EQU
0
R1 EQU
1
R2 EQU
2
R3 EQU
3
R4 EQU
4
R5 EQU
5
R6 EQU
6
R7 EQU
7
R8 EQU
8
R9 EQU
9
R10 EQU
10
R11 EQU
11
R12 EQU
12
R13 EQU
13
R14 EQU
14
R15 EQU
15
****************************************************************
Assembly
Language Source: Part 4
This block of code is the
standard “start up” code used at the beginning of any
program to be run on the Mainframe. This
code should be viewed as “boilerplate”.
The form of this code block
suggests that the code is that for a subprogram: either a
subroutine or a function. Indeed, that
is the way the Operating System handles the
execution of any program: it is a subprogram of the Operating System.
**************************************************************
LAB1 CSECT
SAVE (14,12) SAVE THE CALLER'S REGISTERS
BALR R12,0 ESTABLISH
USING *,R12 ADDRESSABILITY
LA
R2,SAVEAREA ADDRESS OF MY SAVE AREA
ST
R2,8(,R13) FORWARD CHAIN MINE
ST
R13,SAVEAREA+4 BACKWARD CHAIN CALLER'S
LR
R13,R2 SET 13 FROM MY SUB CALLS
**************************************************************
The first line LAB1 CSECT is a declaration of a Control
Section, named “LAB1”.
By definition, a control
section is “a block of coding that can be relocated (independent
of other coding) without altering the operating logic of the program”.
Practically, a control section
is just one block of assembly code.
Opening the
Input and Output
As indicated, the next section
of code opens the input and output and prints a header
line to the output. Unlike the book’s
example, this does not skip to a new page.
* SET UP THE
INPUT AND OUTPUT AND PRINT HEADERS
*
OPEN
(PRINTER,(OUTPUT))
OPEN THE STANDARD OUTPUT
OPEN
(FILEIN,(INPUT))
OPEN THE STANDARD INPUT
PUT
PRINTER,PRHEAD
PRINT HEADER
GET
FILEIN,RECORDIN
GET THE FIRST RECORD, IF THERE
*
The first two statements open a
device, called PRINTER, for
output and another,
called FILEIN, for input.
Note that the open of the input
and the output can be combined into a single statement.
OPEN (FILEIN,(INPUT), PRINTER,(OUTPUT))
Your instructor prefers to use
separate statements, one for each I/O file.
This facilitates isolation of execution errors associated with the OPEN
statements.
The
definition of FILEIN,
given later in a Data Control Block, specifies the label of a
statement to be executed when an End–of–File occurs on the input.
The Print
Here is the “main body” of the
assembly code.
GET
FILEIN,RECORDIN
GET THE FIRST RECORD
*
* READ AND PRINT
*
A10LOOP MVC
DATAPR,RECORDIN MOVE INPUT RECORD
PUT
PRINTER,PRINT PRINT THE RECORD
GET
FILEIN,RECORDIN GET THE NEXT RECORD
B
A10LOOP GO BACK AND
PROCESS
*
Note that the code at label A10LOOP is executed
the first time only if the top line
of code has actually returned a record (“card image” or 80 characters of text).
On execution of this code at
label A10LOOP, we are guaranteed that there is a record
in the data storage area associated with the identifier RECORDIN.
These eighty characters of text
(trailing blanks are included) are copied into the data
storage area associated with the identifier DATAPR, and then sent to the output.
This code then tries to get
another line (card image) of input. If
there is more input,
the code executes an unconditional branch to the statement A10LOOP, thus
continuing the loop. Otherwise, it
branches to A90END and closes the program.
The Print
The best way to view this print
loop is to add a construct that is used
in both Java and C/C++.
GET
FILEIN,RECORDIN
GET THE FIRST RECORD
*
A10LOOP MVC
DATAPR,RECORDIN MOVE INPUT
RECORD
PUT
PRINTER,PRINT PRINT THE RECORD
GET
FILEIN,RECORDIN GET THE NEXT RECORD
If End_of_File Then Break
B
A10LOOP GO BACK AND
PROCESS
*
The loop is never entered if
the first GET statement does not return a record.
The loop is exited when the
contained GET statement encounters an End of File.
Otherwise, the processing continues.
Again, the Data Control Block
for the input device, FILEIN, specifies the label
of the statement to be executed when an EOF is found on the input.
Closing the
Input and Output
When there is no more input to
process, the code calls a section to close the I/O
and terminate the processing.
A90END CLOSE
FILEIN
CLOSE
PRINTER
Note the statement with label A90END. This will be seen to be the statement
associated
with the end of file on the input.
Traditionally, a program will
have some “close up” processing to do at this time, such as
printing totals and summaries. Here the
code just closes the Input and Output.
This is the end of the custom
code. The rest of the code is “boilerplate”.
The Standard
Closing Code
Here is the standard “postfix
code”. It must be the last section of
code executed in any
program to be run on our mainframe, which is running the IBM OS operating
system.
******************* END LOGIC **************************
L
R13,SAVEAREA+4 POINT AT OLD SAVE AREA
LM
R14,R12,12(R13) RESTORE THE REGISTERS
LA
R15,0 RETURN CODE = 0
BR
R14 RETURN TO OPERATING
SYSTEM
**************************************************************
When
your program terminates, it must execute a return to the Operating
System so that the latter can continue execution of another program.
This
is the return code required by the operating system.
Defining the
Output
The output file is defined
using a standard DCB (Data Control Block)
PRINTER DCB DSORG=PS, X
MACRF=(PM), X
DEVD=DA,
X
DDNAME=PRINTER, X
RECFM=FM, X
LRECL=133
The output is to a PS (Physical
Sequential) device.
The specific unit happens to be
a disk file, which supports DA (Direct Access)
The name associated with this
is PRINTER. The label is obviously used here with
two distinct meanings. I shall
investigate this.
The logical record length is
133 bytes, for 133 characters.
Note the continuation
indicators in column 72 of each line but the last.
These six lines are assembled
as one statement.
This is the example of invocation
of a macro by keywords; each line is of the
form KEYWORD=VALUE.
Defining the
Input
The input file is defined using
a standard DCB (Data Control Block).
FILEIN
DCB DSORG=PS, X
MACRF=(GM), X
DEVD=DA,
X
DDNAME=FILEIN, X
EODAD=A90END, X
RECFM=FB,
X
LRECL=80
DSORG indicates that the data
set is “physical sequential”, organized as
a sequence of input records and not indexed in any way.
MACRF
defines the type of input operation, here “get and move to work area”,
so that it can be accessed by the GET macro.
DDNAME identifies the file’s
symbolic name.
DEVD defines a particular I/O
unit. This data set is Direct Access.
RECFM specifies the operation
to move data from the work area.
LRECL specifies the length of a
logical record. It is 80 bytes for 80
characters.
EODAD provides the end–of–file
address for the input file that is read sequentially.
The Input Data
Record
RECORDIN reserves eighty bytes of memory storage for use in
the input of an
eighty–character card image. All input will be assumed to be eighty characters.
*************************************************************
* INPUT RECORD AREA
*************************************************************
RECORDIN DS CL80
*************************************************************
Future programs will follow a
convention familiar to COBOL programmers.
We
shall still assume 80–column input, but divide it into fields.
RECORDIN DS 0CL80 THE CARD HAS 80 COLUMNS
FIRSTNME DS CL8 FIRST 8 COLUMNS FOR THE FIRST NAME
LASTNME DS CL10
NEXT 10 COLUMNS FOR THE LAST NAME
ACCOUNT DS CL12
NEXT 12 COLUMNS FOR THE ACCOUNT NUM
FILLER DS CL50
OTHER 50 COLUMNS ARE PROBABLY BLANK.
Note the “0” in the “0CL80” that defines
the entry RECORDIN.
Each card image must correspond
to 80 bytes for 80 characters.
The
“0CL80”
does not actually allocate any space, but serves almost as a comment that
the next 80 bytes are associated with input.
The next 4 statements allocate the 80 bytes.
Sample Input
Data Record: Reading Positive Integers
Suppose that we wanted to read
a list of five–digit numbers, one number per “card”.
Each digit is represented as a character, encoded in EBCDIC form.
The appropriate declaration
might be written as follows.
RECORDIN DS
0CL80 THE CARD HAS 80 COLUMNS
DIGITS
DS CL5 FIVE BYTES FOR FIVE DIGITS
FILLER
DS CL75 THE NEXT 75 COLUMNS ARE IGNORED.
In this, the first five columns
of each input line hold a character to be interpreted as a
digit. The other 75 are not used. This input is not free form.

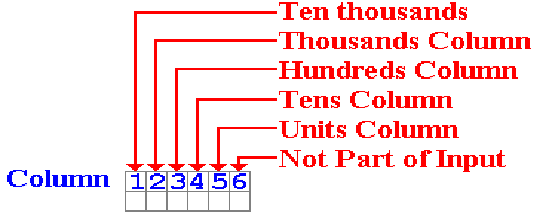

Based on the above declaration,
one would characterize the first five columns as follows:
Sample Code
and Data Structure
Consider the code fragment
below, containing operations not yet defined.
This
uses the above declarations, specifically the first five columns as digits.
PACK PACKIN,DIGITS CONVERT TO PACKED DECIMAL
AP PACKSUM,PACKIN ADD TO THE SUM.
Given the definition of DIGITS, the PACK instruction
expects the input to be
right justified in the first five columns.
The input below will be read as “23”.
23 Note the three spaces
before the digits.
2 is in the tens column and 3
is in the units.
The following input is not proper for this declaration.
37 “3” in column 3, “7”
in column 4, column 5 blank.
The PACK instruction will process the first five columns, and
result in a number that
does not have the correct format. The AP (an addition
instruction) will fail because its
input does not have the correct input, and the program will terminate
abnormally.
The Output
Data Area: The Header
The header is an example of a
constant record to be output.
***************************************************************
*
* HERE IS THE HEADER FOR SPRING 2009
*
***************************************************************
PRHEAD DS 0CL133
PRC1 DC
C' ' PRINT CONTROL:PRINT ON NEXT LINE
DC
CL10' '
DC
CL122'***COLUMBUS STATE UNIVERSITY SPRING 2009***'
*
***************************************************************
The blank in the first
character will cause normal spacing when the line is printed.
Optionally, one can have double
spaced lines, overprinted lines, etc.
The next ten columns in the
header output will contain blanks.
The next 122 columns will
contain the text, padded to the right with blanks.
The Output
Data Area: Print Area
Card image data is transferred
to this area and then printed.
The function of this program is
to read data cards and print them.
***************************************************************
*
* THIS DEFINES THE PRINT OUTPUT AREA.
* IT BEGINS WITH A BLANK PRINT CONTROL
CHARACTER
* IT THEN HAS 80 CHARACTERS TO HOLD THE INPUT
CARD IMAGE
* IT THEN HAS 42 CHARACTERS OF FILLER.
*
PRINT DS 0CL133 PRINT AREA
PRC2 DC
C' ' PRINT CONTROL CHARACTER
DC
CL10' '
DATAPR DC CL80' '
DC
CL42' '
*
***************************************************************
The area labeled DATAPR,
holding 80 bytes, is for the card image data.
Each card image will be printed
with normal spacing and ten blanks at the
start of the line.
The decision to place ten
spaces before the echoed input is arbitrary.
The Register
Save Area and Literal Pool
The
program must have local storage sufficient to hold the registers
that the Operating System will save when the program is called.
The
size of the area is exactly 18 full–words.
****************************************************************
*
* REGISTER SAVE AREA
*
****************************************************************
SAVEAREA DS 18F
****************************************************************
The program must specify an area
in which the assembler can store the literals it
generates as a result of a certain kind of immediate argument in the code.
The LTORG macro identifies the
location at which the literal pool is to start.
****************************************************************
*
* LITERAL POOL - THIS PROGRAM DOES NOT USE
LITERALS.
*
****************************************************************
* LTORG *
The LTORG must be used if the program uses any literals.
More on the
Literal Pool
The LTORG macro identifies the location at which the literal
pool is to start. It
must be used if the program contains any reference to literals.
The way to use this is to
“uncomment” the LTORG line, so that it appears as follows.
****************************************************************
*
* LITERAL POOL – THE ASSEMBLER PLACES
LITERALS HERE.
*
****************************************************************
LTORG *
Note that I have changed the
comment to reflect the fact that the program
does use literals.
Consider the following line of
assembly language source code,
which uses literals.
L R4,=F‘17’
Register 4 gets the value 17.
The assembler will allocate a
full word in the literal pool, give it the value 17
and the label =F‘17’.
The End of
the Job
These are the last cards in the
“job deck”.
END LAB1
/*
//GO.PRINTER DD SYSOUT=*
//GO.FILEIN DD *
LINE 1 SPRING 2009
LINE 2 SPRING 2009
LINE 3 SPRING 2009
LINE 4 SPRING 2009
/*
The
two statements form the end of the assembly language source code.
END LAB1
/*
The next two lines are
directives to the operating system to define the real I/O devices.
The second line specifies that the input is to be taken from the lines that
immediately
follow. The data for input are found on
the next four lines.
The last line is the end
of the job.
