Data
Definition, Movement, and Comparison
Topics covered include:
1. Data Definition: the DS and DC statements.
2. The use of literals as statements to define
constants.
3. Data movement commands
4. Data comparison commands
5. Data conversion commands
Each of the last three topics will be covered again in
a future lecture.
It never hurts to mention some things twice.
The DC and
DS Declaratives
These declaratives are statements that assign storage
locations.
The DC declarative assigns initialized storage space,
possibly used to define constants.
This should be read as “Define Initialized Storage”; assembly language does not
support
the idea of a constant value that cannot be changed by the program.
The DS assigns storage, but does not initialize the space.
The assembler recognizes a number of data types. There are many others.
Those of importance to this course are as follows:
A address (an unsigned binary number
used as an address)
B binary (using
the binary digits 0 and 1)
C character
F 32–bit word (a binary number, represented by decimal digits)
H 16–bit half–word
P packed decimal
X hexadecimal number
DS (Define
Storage)
The general format of the DS statement is as follows.
|
Name |
DS |
dTLn ‘comments’ |
The name is an optional entry, but required if the
program is to refer to
the field by name. The standard column
positions apply here.
The declarative, DS, comes next in its standard
position.
The entry “dTLn” is read as follows.
d is the optional
duplication factor. If not specified, it
defaults to 1.
T is the required type specification. We shall use A, B, C, F, P, or X.
note that the data actually
stored at the location does not need to be
of this type, but it is a good
idea to restrict it to that type.
L is an optional length of the data field in bytes.
The next field does not specify a value, but should be
viewed as a comment.
This comment field might indirectly specify the length of the field, if the L
directive is not specified.
Examples of
the DS Statement
Consider the following examples.
C1 DS CL5
A CHARACTER FIELD OF LENGTH 5 BYTES.
THIS HOLDS FIVE
CHARACTERS..
C2 DS
1CL5 EXACTLY THE SAME AS THE ABOVE.
THE DEFAULT
REPETITION FACTOR IS 1.
P1 DS PL2 A PACKED DECIMAL FIELD OF LENGTH TWO
BYTES. THIS HOLDS THREE DIGITS.
P2 DS 5PL4 FIVE PACKED DECIMAL FIELDS, EACH OF
LENGTH 4 BYTES AND
HOLDING 7 DIGITS.
F1 DS F‘23’ ONE 32-BIT FULL WORD. THE FIELD HAS
LENGTH 4 BYTES. THE ‘23’ IS TREATED
AS A COMMENT; NO
VALUE IS STORED.
DS C AN ANONYMOUS FIELD FOR ONE CHARACTER.
THE
LENGTH DEFAULTS TO 1. THERE IS
NO NEED TO NAME EVERY
DECLARATION.
Input
Records and Fields
Data are read into records. You may impose a structure on the record by
declaring it with a zero duplication factor.
Here is a declaration of an 80–byte input area that
will be divided into fields.
CARDIN DS 0CL80
NAME DS CL30
YEAR DS CL10
DOB DS CL8
GPA DS CL3
DS CL29
The idea is that the entire record is read into the
80–byte field CARDIN.
The data can be extracted one field at a time.
Here is the COBOL equivalent.
01 CARDIN.
10 NAME PIC X(30).
10 YEAR PIC X(10).
10 DOB PIC X(08).
10 GPA PIC X(3).
10 FILLER PIC X(29).
More on the
Zero Repetition Factor
Consider the previous example, used to define fields
in a card image input.
As in all of this type of programming the input is
imagined as an 80–column card.
CARDIN DS 0CL80
NAME DS CL30
YEAR DS CL10
DOB DS CL8
GPA DS CL3
FILLER DS CL29
Because of the zero repetition factor the line CARDIN DS 0CL80 can be
viewed
almost as a comment. It declares that a
number of statements that follow will actually
allocate 80 bytes for 80 characters, and associate data fields with that input.
Here we see that 30 + 10 + 8 + 3 + 29 = 80. In this case, it is the five statements
following the CARDIN DS 0CL80 that actually allocate the storage space.
Remember that it is not the number of statements that
is important, but the
number of bytes allocated.
Another Card
Definition
Suppose that we have a program that is to read a list
of integers, one per card
and do some processing with those integers.
The same logic will apply to numbers in any format
(fixed point, floating point, etc.),
but the example is most easily made with positive integer data.
At this point, we cannot process a sign bit; “+” and
“–” are out.
The first choice is how many digits are to be used for
the positive integer.
The second choice is where to place those digits.
Here we choose to use five digits, placed in the first
five columns of the card.
The appropriate declaration follows.
RECORDIN DS
0CL80 THE CARD HAS 80 COLUMNS
DIGITS
DS CL5 FIVE BYTES FOR FIVE DIGITS
FILLER
DS CL75 THE NEXT 75 COLUMNS ARE IGNORED.
Notice that the first statement does not allocate
space. The next two statements
allocate a total of 80 bytes for 80 characters.
Sample Input
Data Record: Reading Positive Integers
Suppose that we wanted to read
a list of five–digit numbers, one number per “card”.
Each digit is represented as a character, encoded in EBCDIC form.
The appropriate declaration
might be written as follows.
RECORDIN DS
0CL80 THE CARD HAS 80 COLUMNS
DIGITS
DS CL5 FIVE BYTES FOR FIVE DIGITS
FILLER
DS CL75 THE NEXT 75 COLUMNS ARE IGNORED.
In this, the first five columns
of each input line hold a character to be interpreted as a
digit. The other 75 are not used. This input is not free form.

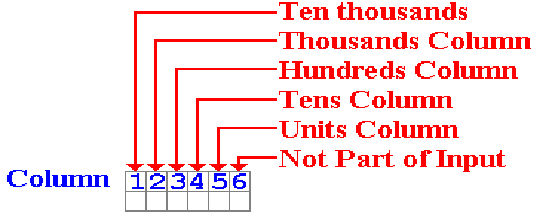

Based on the above declaration,
one would characterize the first five columns as follows:
Sample Code
and Data Structure
Consider the code fragment
below, containing operations not yet defined.
This
uses the above declarations, specifically the first five columns as digits.
PACK PACKIN,DIGITS CONVERT TO PACKED DECIMAL
AP PACKSUM,PACKIN ADD TO THE SUM.
Given the definition of DIGITS, the PACK instruction
expects the input to be
right justified in the first five columns.
The input below will be read as “23”.
23 Note the three spaces
before the digits.
2 is in the tens column and 3
is in the units.
The following input is not proper for this declaration.
37 “3” in column 3, “7”
in column 4, column 5 blank.
The PACK instruction will process the first five columns, and
result in a number that
does not have the correct format. The AP (an addition
instruction) will fail because its
input does not have the correct input, and the program will terminate
abnormally.
DC (Define
Constant)
Remember that this declarative defines initialized storage, not a constant in the
sense of a modern programming language.
For example, one might declare an
output area for a 132–column line printer as follows:
PRINT DS 0CL133
One definitely wants to avoid random junk in the
printer control area.
The data to be output should be moved to the LINEOUT field.
NOTE: One
might have to clear out the output area after each line is printed.
Character constants are left justified. Consider the
following.
B1 DC CL4‘XYZ’
THREE CHARACTERS IN 4 BYTES
WHAT IS STORED? ANSWER E7
E8 E9 40 (hexadecimal)
The above is the EBCDIC for the string “XYZ ”
DC: Define
Initialized Storage
Consider the following assembly language code and
associated data declarations.
Again, this uses assembly language operators that have
yet to be defined.
L R5,=F‘2234’ PUT THE VALUE 2234 INTO REGISTER
R4. IT IS A 32-BIT INTEGER.
ST R5,FW01 STORE INTO THIS LOCATION.
More code here.
FW01 DC F‘0’ A 32-BIT FULLWORD WITH VALUE
INITIALIZED TO
ZERO.
There is no problem with changing the value of this
“constant”, called FW01.
The DC declaration just sets aside storage space (here four
bytes for a fullword)
and assigns it an initial value. The
program is free to change that value.
There is nothing in this assembler language that
corresponds to a constant, as
the term is used in a higher level language such as Java, C++, or Pascal.
More On DC (Define Constant)
The general format of the DC statement is as follows.
|
Name |
DC |
dTLn ‘constant’ |
The name is an optional entry, but required if the
program is to refer to
the field by name. The standard column
positions apply here.
The declarative, DC, comes next in its standard
position.
The entry “dTLn” is read as follows.
d is the optional
duplication factor. If not specified, it
defaults to 1.
T is the required type specification. We shall use A, B, C, F, P, or X.
Note that the data actually
stored at the location does not need to be
of this type, but it is a good
idea to restrict it to that type.
L is an optional length of the data field in bytes.
The ‘constant’ entry is required and is used to
specify a value.
If the length attribute is omitted, the length is specified implicitly by this
entry.
The
Duplication Factor
The duplication factor is used in both the DC and DS
statements.
Here are a few examples.
P1 DS 3PL4
Three 4–byte fields for packed
decimal
C1 DS 1CL5
ONE 5-CHARACTER FIELD.
C2 DS
CL5 ANOTHER 5-CHARACTER FIELD.
H1 DS 4H FOUR HALF WORDS (8 BYTES)
F2 DS 5F FIVE FULL WORDS (20 BYTES)
F3 DC 2F‘32’ TWO FULL WORDS, EACH = 32
EIGHT BYTES OF
STORAGE ARE ALLOCATED,
WITH CONTENTS 00 00
00 20 00 00 00 20.
TPL DC 3C‘1234’ THREE
COPIES OF THE CONSTANT ‘1234’
TWELVE BYTES OF
STORAGE ARE ALLOCATED:
F1 F2 F3 F4 F1 F2 F3
F4 F1 F2 F3 F4
NOTE: The
address associated with each label is the leftmost byte allocated.
For TPL, this would be the
byte containing the F1 (the first one).
More on the
Duplication Factor
Consider again the declaration of the three character
strings.
TPL DC 3C‘1234’ THREE
COPIES OF THE CONSTANT ‘1234’
Here is the explicit allocation of the twelve bytes,
for the twelve characters.
Address Contents
TPL F1
TPL+1 F2
TPL+2 F3
TPL+3 F4
TPL+4 F1
TPL+5 F2
TPL+6 F3
TPL+7 F4
TPL+8 F1
TPL+9 F2
TPL+10 F3
TPL+11 F4
Some Trick
Questions
Consider the following two statements.
To what value is each label initialized?
DATE1 DS
CL8‘DD/MM/YY’
DATE2 DC
CL8‘MM/DD/YY’
ANSWER:
1. DATE1 is not
initialized to anything. The string ‘DD/MM/YY’ is
treated as a comment. I view this as a trick.
2. DATE2 is initialized
as expected.
What about the following?
DATE3 DC
CL8 ‘MM/DD/YY’
Note the space after CL8.
This
is an error, likely to cause a problem in the assembly process.
The space after the “CL8” initiates a comment, so the label is not
initialized.
Hexadecimal
Constants
Two hexadecimal digits can represent any of the 256
possible values that can
appear in a byte or represented as an EBCDIC character.
This is handy for specifying character strings that
are otherwise hard to
code in the assembly language.
Consider the following example.
WARNING
Do not confuse hexadecimal constants with other
formats. For example:
Format Constant Bytes Hex
Representation
Hexadecimal
DC X’ABCD’ 2
ABCD
Packed DC
P’123’ 2 123C
Hexadecimal
DC X’123’ 2
0123
More
Confusion: All Storage Can Be Seen as Hexadecimal
The trouble is that all data types are stored as
binary strings, which can easily
be represented as hexadecimal digits.
Consider the positive binary number 263. Now 263 = 256 + 4 + 2 + 1, so we have
its binary representation as 01 0000 0110.
The table below uses standard bit numbering.
|
Bit No. |
9 |
8 |
7 |
6 |
5 |
4 |
3 |
2 |
1 |
0 |
|
Value |
0 |
1 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
|
Hex |
1 |
0 |
7 |
|||||||
Suppose
that we have two data declarations
BINCON DC H’263’
PACKCON DC P’263’
What would be stored. Recall that each form takes two bytes, or
four hexadecimal
digits for storage. Recall also that a
memory map shows the contents in hexadecimal.
Here is what we would see:
Hexadecimal Assembly Code
0107 BINCON DC H’262
263C PACKCON DC P’263’
An Important
Difference from High–Level Languages
Note that each of BINCON and PACKCON can represent
perfectly a perfectly good
binary number. Each can be viewed as a
half–word.
The value in a location depends on the instruction
used to process the bits in that location.
Consider the following code fragments, each of which defines RESULT as
necessary.
In each case, RESULT occupies two bytes: either a half–word or 3 packed digits.
Case
1: Packed decimal arithmetic
ZAP RESULT, PACKCON COPY PACKCON TO RESULT
AP
RESULT, PACKCON RESULT NOW
HOLDS 526C
As
263 + 263 = 526, the value in RESULT is now 526 (represented as 526C).
Case 2: Two’s–Complement
Integer Arithmetic
LH R3, PACKCON LOAD HEXADECIMAL 263C
AH R3, PACKCON 263C + 263C = 4C78
STH R3, RESULT RESULT NOW HOLDS 4C78.
In hexadecimal: C + C = 18 and 6 + 6 = C
(12 + 12 =
24 = 16 + 8 and 6 + 6 = 12)
Declarations:
High Level vs. Assembler
It
is important to re–emphasize the difference between data declarations in
a high level language and data declarations in assembler language.
High–Level Languages
Suppose
a declaration such as the following in Java.
int a, b ; // Declares each as a 32-bit integer
The compiler does a number of things.
1) It creates two four–byte (32 bit) storage areas and associates
one of the areas
with each of the labels. The labels are now called “variables”.
2) It often will clear each of these storage
areas to 0.
3) It will interpret each arithmetic operator on
these variables as an integer
operation. Thus “a + b” is an invocation to the integer
addition function.
Assembler
A DS
H Set aside two bytes for label A
B DS H
and two bytes for label B.
It is the actual assembly operation that determines
the interpretation of the data
associated with each label. Note that
neither is actually initialized to a value.
Literals
The assembler provides for the use of literals as shortcuts to the DC
declarative.
This allows the use of a constant operand in an assembly language instruction.
The immediate
operand, another option, will be discussed later.
The assembler processes the literal statement by:
1. Creating an object code constant,
2. Assigning the value of the literal to this
constant,
3. Assigning an address to this constant for use
by the assembler, and
4. Placing this object in the literal pool, an area of storage
that is managed by the
assembler.
The
constants created by the literal are placed at a location in the program
indicated
by the LTORG
directive.
Your instructor’s experience is that the assembler
cannot process any use of a literal
argument if the LTORG directive has not been used.
Setting Up
the Literal Pool
The easiest way to do this is to “uncomment” the LTORG declaration in
the sample
program and change the comment. The
sample program has the following. Note the
“*” in column 1 of the line containing the
declaration.
****************************************************************
*
* LITERAL POOL - THIS PROGRAM DOES NOT USE
LITERALS.
*
****************************************************************
* LTORG *
Here
is the changed declaration, with a new comment that is more appropriate.
****************************************************************
*
* LITERAL POOL – THE ASSEMBLER PLACES
LITERALS HERE.
*
****************************************************************
LTORG *
Note that the only real change is to remove the “*” from line 1 of the
last statement.
More on
Literals
A literal begins with an equal (=) sign, followed by a
character for the type of
constant to be used and then the constant value between single quotes.
Here are two examples that do the same thing.
Use of a DC: HEADING DC‘INVENTORY’
MVC PRINT,HEADING
Use of a
literal MVC PRINT,=C‘INVENTORY’
Here is another example of a literal, here used to
load a constant into a register.
We begin with the instruction itself: L R4,=F'1' Set R4 equal
to 1.
000014 5840 C302 00308 47
L R4,=F'1'
Here is the structure of the literal pool, after the assembler has
inserted the constant 1.
240 * LITERAL POOL
241 ***************************
000308 242 LTORG *
000308 00000001 243 =F'1'
000000 244 END
LAB1
Organization
of the Literal Pool
The
literal pool is organized into sections in order to provide for efficient use
of memory.
Consider
the following plausible placement, which is not used.
H1 DC
X’CDEF’
C1 DC
CL3’123’ At
address H1 + 4
F1 DC
F’1728’ At
address H1 + 7
If the assembler must place F1 at an address that is a
multiple of four,
it would have to add a useless single byte as a “pad”.
The
rules for allocation of the literal pool minimize the fragmentation of memory.
The literals are organized in four sections, which appear in the following
order.
1. All literals whose length is a multiple of 8.
2. All literals whose length is a multiple of 4.
3. All literals whose length is a multiple of 2.
4. All other literals.
The implicit statement is the literal pool begins on
an address that is a multiple of 8.
Data
Movement
The MVC instruction is designed to move character
data.
As it moves a number of bytes from a source to a
destination, it can
be used to move data of any type.
We shall discuss the effect of this instruction at a
later time, focusing especially
on moving characters between fields of unequal length.
Packed Data
The ZAP (Zero Add Packed) instruction can be used to
transfer packed decimal data.
Fullword (and Address) Data
Most commonly, moves of this type involve a
general–purpose register as either
the source, the destination, or both.
L 6, F1 Load a register from a fullword
L 8, =A(TABLE) Load an address
LR 8, 3 Register
to register copy
ST 8,
Data
Comparison and Branching
One important tool in programming is the ability to
compare the contents of two
fields and branch conditionally based on the result of these comparisons.
The comparison strategy calls for a two–step process:
1) Do an operation, such as a comparison or
arithmetic operation,
that sets a standard condition.
2) Then invoke a conditional branch based on one
of the standard conditions.
The four standard conditions recognized by the
System/360 architecture are:
00 Equal or zero
01 Low or minus
10 High or plus
11 Arithmetic overflow
These numbers are reflected in a two–bit field in the
System/360 PSW,
the Program Status Word.
The contents of the PSW are set by specific comparison
instructions, to be
discussed later.
Branch
Instructions
The assembler provides two sets of conditional branch
statements, one for general
comparisons and another (exactly equivalent) for arithmetic comparisons.
General
Conditional Branch Instructions
BE Branch equal BNE Branch not equal
BL Branch low BNL Branch not low
BH Branch high BNH Branch not high
Arithmetic Comparison Branch Instructions
BZ Branch zero BNZ Branch not zero
BM Branch minus BNM Branch not minus
BP Branch plus BNP Branch not plus
BO Branch overflow BNO Branch
not overflow
Unconditional Branch
B Branch
Comparing
Character Data
The CLC instruction is used to compare data encoded as
EBCDIC, or
equivalently in Zoned Data format.
Comparison is made on a character by character basis,
left to right, following
the sort order corresponding to the EBCDIC code.
The example in the book (page 95) is slightly
misleading due to its focus on
business processing of numeric account codes represented as zoned data.
CLC NEW, PREV
BH B20HIGH
NEW sorts higher than PREV
BE B21EQUAL
The two are equal
* HERE IF NEW SORTS
LESS
The problem here is that the comparison is treating
the numbers as zoned data.
If the number of digits in the two numbers is the
same, then the comparison will be
the same as for an arithmetic comparison.
Numeric
Comparisons
The comparison discussed above treats the fields as
unsigned sequences of characters.
The next two make algebraic comparisons; negative
always is less than positive.
Packed Data
The CP instruction is used to compare packed data.
Binary Data
There are three binary comparison instructions.
C compare a
register to a 32–bit fullword,
CH compare a
register (as a halfword) to a 16–bit halfword
CR compare two
registers.
Data
Conversions
Recalling that numeric data has the same
representation as either character
data or zoned data, we have four conversion instructions.
Character to Packed Format
Use the PACK instruction, as in PACK PACKFLD, ZONEFLD
Packed to Binary Format
Use the CVB instruction, as in CVB 6, DBLWORD
This is an RX type instruction; the destination must
be a register.
Binary to Packed Format
Use the CVD instruction, as in CVD 8, DBLWORD
This is also an RX type instruction; the source must
be a register.
Packed to Character (Zoned) Format
Use the UNPK instruction, as in UNPK ZONEFLD, PACKFLD
