Processing Character Data

We now discuss the definitions and uses of character data in an IBM Mainframe
computer.  By extension, we shall also be discussing zoned decimal data.

Character data and zoned decimal data are stored as eight–bit bytes.

These eight–bit bytes are seen by IBM as being organized into two parts.

This division is shown in the following table.













Note again the bit numbering scheme used by IBM.

Character constants have a few constraints.

        1.     Their length may be defined from 1 to 256 characters.
                Long character constants should be avoided.

        2.     They may contain any character.  Characters not available in the standard
                set may be introduced by hexadecimal definitions.

        3.     The length may be defined either explicitly or implicitly.
                It is usually a good idea not to do both.

The EBCDIC Character Set

Here is the set of important EBCDIC codes.





a – i

81 - 89

j – r

91 – 99

s – z

A2 – A9

A – I

C1 – C9

J – R

D1 – D9

S – Z

E2 – E9

0 – 9

F0 – F9

Note that the EBCDIC codes for the digits ‘0’ through ‘9’ are exactly
the zoned decimal representation of those digits.  (But see below).

The DS declarative is used to reserve storage for character data.

The DC declarative is used to reserve initialized storage for character data.

We now cover a few topics:

        1.     Moving Character Data

        2.     Comparing Character Data

        3.     Literals and immediate instructions.

Other Character Sets

The original IBM System/360 supported the ASCII character set, but that was almost
never used.  The ASCII support was deleted from the IBM System/370 and has
never reappeared.

Unicode™ is the only other character set given native support by the IBM Z–Series
computers.  Note that “Unicode” is a registered trademark of Unicode, Inc.

To support Unicode™ character representations, we see commands such as

        CLCLU        Compare Logical Long Unicode

        MVCLU        Move Long Unicode

        PKU             Pack Unicode

        UNPKU        Unpack Unicode

We shall not investigate the Unicode extensions, but they are there.
See section 7 of the IBM z/Architecture Principles of Operation , SA32–7832–06

Declaring Unicode Characters

All IBM z/System assembly languages use the DC construct for defining a
label with a character value.

The later z/System languages use type extensions to define the values.

A1     DC  CA‘ASCII’

E1     DC  C‘EBCDIC’


U1     DC  CU‘Unicode

The Unicode standard supported by the z/System is UTF–16, which calls for
16 bit (2 byte) representations for each character.

See also the manual
IBM High Level Assembler for z/OZ & z/VM & z/VSE
Language Reference, Release 6

Zoned Decimal Data

The zoned decimal format is a modification of the EBCDIC format.

The zoned decimal format seems to be a modification to facilitate
processing decimal strings of variable length.

The length of zoned data may be from 1 to 16 digits, stored in 1 to 16 bytes.

We have the address of the first byte for the decimal data,
but need some “tag” to denote the last (rightmost) byte.

The assembler places a “sign zone” for the rightmost byte of the zoned data.
          The common standard is
X‘C’ for non–negative numbers, and
X‘D’ for negative numbers.

Other than the placing of a hexadecimal digit X‘C’ or X‘D’ for the zone part of
the last digit, the two representations are almost identical.

Consider the negative number –12345.

As a string of EBCDIC characters it is hexadecimal     60 F1 F2 F3 F4 F5.

In the zoned decimal representation it is hexadecimal    F1 F2 F3 F4 D5.

As packed decimal format it is stored as 12 34 5D.  Spaces are only for readability.

The MVC Instruction

The MVC (Move Character) instruction is designed to move character data,
but it can be used to move data in any format, one byte at a time.

The instruction may be written as  MVC DESTINATION,SOURCE

The format of the instruction is      MVC D1(L,B1),D2(B2)

An example of the instruction is    MVC F1,F2

Here are a few comments on MVC.

    1.   It may move from 1 to 256 bytes, determined by the use of an 8–bit number
          as a length field in the machine language instruction.

          The destination length is first decremented by 1 and then stored in the length byte.
          This disallows a length of 0, and allows 8 bits to store the value 256.

    2.   Data beginning in the byte specified by the source operand are moved one
          byte at a time to the field beginning with the byte in the destination operand.

          One of the reasons for complexity of the implementation is that the source
          and destination regions may overlap.

    3.   The length of the destination field determines the number of bytes moved.

More On MVC

The form is MVC D1(L,B1),D2(B2).  The object code format is as follows:















B1 D1


B2 D2


Consider the example assembly language statement, which moves the string of
characters at label
CONAME to the location associated with the label TITLE.


Suppose that:  1.     There are fourteen bytes associated with TITLE, say that it was
                                declared as
TITLE DS CL14.  Decimal 14 is hexadecimal E.

                        2.     The label TITLE is referenced by displacement X‘40A’
                                from the value stored in register
R3, used as a base register.

                        3.     The label CONAME is referenced by displacement X‘42C’
                                from the value stored in register
R3, used as a base register.

Given that the operation code for MVC is X‘D2’, the instruction assembles as

D2 0D 34 0A 34 2C   Length is 14 or X‘0E’; L – 1 is X‘0D’

MVC: Explicit Register Usage

The instruction may be written in the form MVC D1(L,B1),D2(B2)

Consider the following example: MVC 32(5,7),NAME.

In this example, suppose that general–purpose register 7 has the value X‘22400’.

We note that the label NAME represents an address that will be converted to the form
D2(B2); that is, a displacement from a base register.  This base register might be
register 7 or any of the ten registers (R3 – R12) available for general use.

We examine the specification of the first argument, which is the destination address.
It is of the form

The length is L = 5.  This indicates that five characters are to be moved.

The displacement is decimal 32, or X‘20’.

The address of the first character in the destination is given by adding this displacement
to the contents of the base register:
X‘22400’ + X‘20’ = X‘22420’.

Five characters are moved to the destination.  The fifth character is moved to a location
that is four bytes displaced from the first character; its address is

MVC: Explicit Register Usage (Continued)

Consider again the example: MVC 32(5,7),NAME.

Suppose that the label NAME corresponds to an address given by offset X‘250’(592 in
decimal) from general–purpose register 10 (denoted in object code by

When the instruction is written in the form MVC D1(L,B1),D2(B2), we see that
it has the form
MVC 32(5,7),592(10).  ALL NUMBERS ARE DECIMAL.

In the object code format, the value stored for the length attribute is one less than
the actual length.  The length is 5, so the stored value is 4, or

The object code format is D2 04 70 20 A2 50.

Again, recall the object code format for this instruction.

Op Code



















MVC: Example 1

The number of bytes (characters) to move may be explicitly stated.

If the number is not explicitly stated, the number is taken as the length
(in bytes or characters) of the destination field.

Consider the following program fragment.

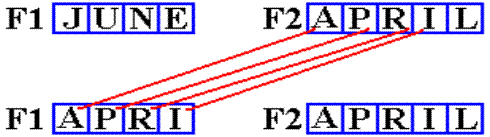

What happens is shown in the next figure.

The assembler recognizes F1 as a four–byte field from its declaration by the DC
statement.  This implicitly sets the number of characters to be moved.

The ‘L’ is not moved, as it is the fifth character in F2.  It is at address F2+4.

MVC: Example 2

The number of bytes (characters) to move may be explicitly stated.

While the explicit length may exceed that of the destination field,
your instructor (but not many textbook authors) considers that bad programming practice.

Consider the following program fragment, in which an explicit length of 3 is set.

Recall the form of the instruction:    MVC D1(L,B1),D2(B2).

MVC F1(3),F2

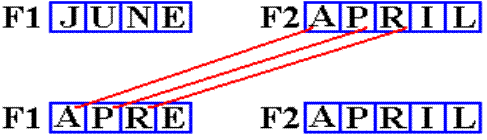

What happens is shown in the next figure.

Note that only “APR” is moved.  The last character of F1, which is an “E”,
is not changed.  This last character is at address

MVC: Example 3

We may use relative addressing as well as an explicit length declaration.

Consider the following program fragment.

MVC F1+1(2),F2+2



This calls for moving two characters from address F2+2 to address F1+1.

What two characters are at address F2+2?  Answer:  “RI”.

What two characters are at address F1+1?  Answer:  “UN”.

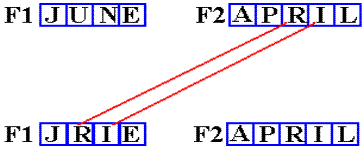

What happens is shown in the next figure.

The other two characters in F1, at addresses F1 and F1+3, are not changed.

MVC: Example 4

We now consider the explicit use of base registers.

Recall the form of the instruction:    MVC D1(L,B1),D2(B2).

In the following three examples, we suppose that PRINT is a label associated with
an output field of length 80 bytes.  In reality, it only must be “big enough”.

FRAG01   MVC PRINT+60(2),=C‘**’


         MVC 0(2,8),=C‘**’    DEST ADDRESS IS PRINT+60


         MVC 60(2,8),=C‘**’   NOTE OFFSET IS 60

Suppose that the address of PRINT is given by base register 12 and displacement
X‘200’.  Suppose register 12 contains a value of X‘1000’.

The label PRINT references address X‘1200’.

The value of PRINT+60 is then X‘1200’ + X‘3C’ = X‘123C’.

We shall repeat this example and discuss similar examples in a future lecture
on accessing arrays and tables.

Character Comparison: CLC

The CLC (Compare Logical Character) instruction is one of the two used to compare
character fields, one byte at a time, left to right.

Comparison is based on the binary contents (EBCDIC code) contents of the bytes.
The sort order is from X’00’ through X’FF’.

The instruction may be written as  CLC Operand1,Operand2

The format of the instruction is      CLC D1(L,B1),D2(B2)

An example of the instruction is    CLC NAME1,NAME2

This instruction sets the condition code that is used by the conditional branch
instructions.  The condition code is set as follows:

If Operand1 is equal Operand2              Condition Code = 0

If Operand1 is lower than Operand2      Condition Code = 1

If Operand1 is higher than Operand2     Condition Code = 2

The operation moves, byte by byte, from left to right and terminates as soon as an
unequal comparison is found or one of the operands runs out.

Using the Condition Codes

The character comparison operators, CLC and CLI, set the condition codes.

These codes are used by the branching instructions in their non–numeric form.

Here are the standard comparisons.

          BE         Branch Equal                  Condition Code = 0

          BNE      Branch Not Equal           Condition Code ¹ 0

          BL         Branch Low                    Condition Code = 1

          BNL      Branch Not Low             Condition Code ¹ 1

          BH         Branch High                   Condition Code = 2

          BNH      Branch Not High            Condition Code ¹ 2.

Here are two equivalent examples.

          CLC      X, Y                        CLC        X, Y

          BL         J20LOEQ                BNH        J20LOEQ

          BE         J20LOEQ

CLC: An Example

Consider the following code fragment.  Note that the comparison value is given
as the seven EBCDIC characters

Presumably, this would be converted into seven Packed Decimal digits and held to
represent the fixed point number 2000.00, presumably $2,000.00.

C20      CLC SALPR,=C‘0200000’      COMPARE TO 2,000.00

         BNH C30                    NOT ABOVE 2,000.00

         BL  C40                    LESS THAN 2,000.00

*        EQUAL TO 2,000.00

Again, this is presented as representing Packed Decimal data, which it probably
does represent.  The comparison, however, is an EBCDIC character comparison.

Here is another example, built around the first one.  It represents an important
special case that we shall consider when discussing Packed Decimal format.

C20      CLC  SALPR,=C‘           IS THE FIELD BLANK?

         BNE  NOTBLNK

         MVC  SALPR,=C‘0000000’    CONVERT BLANKS TO 0’S



These two operations are similar to their more general “cousins”, except
that the second operand is a one–byte immediate constant.

The immediate constant may be of any of the following formats:

          B   binary

          C   character

          X   hexadecimal

The format of these instructions are:     MVI Operand1,ImmediateOperand

                                                                CLI Operand1,ImmediateOperand

Examples of these instructions are:               MVI CONTROL,C’$’  Character ‘$’

                                                                CLI CODE,C’5’     Character ‘5’


Character Literals vs. Immediate Operands

The main characteristics of an immediate operation is that the operand, called the
“immediate operand” is contained within the instruction.

The main characteristic of a literal operand is that it is stored separately from the
operand, in a literal pool generated by the assembler.

Here are two equivalent instructions to set the currency sign.

Use of a literal:                       MVC DOLLAR,=C’$’

Use of immediate operand     MVI DOLLAR,C’$’

Note the “=” in front of the literal.  It is not present in the immediate operand.

NOTE:    The two instructions have the same affect in the program,
                however, they are different.

The opcode for MVC is          X‘D2’

The opcode for MVI is           X‘92’


Look Ahead: Processing Packed Decimal and Integer Data

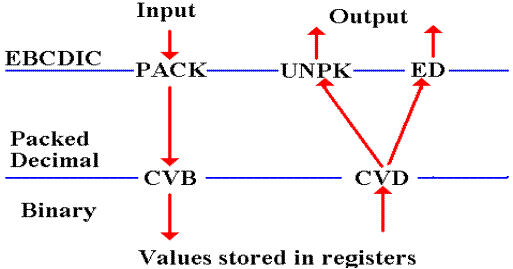

The standard way of processing any data that has print representation is to assume that
the input will be in fixed pre–defined columns, as will the output.

All data are input and output as character data, in the EBCDIC format.

If the data are assumed to represent packed decimal values, the code must convert
from EBCDIC to packed decimal format.

If the data are assumed to represent integer data, they are commonly converted twice:
first to packed decimal format and then to integer format.

Outline of Code for Processing Free–Form Integer Input

As an exercise, we shall write and discuss code for the direct conversion of digital data,
represented in EBCDIC code, to integer data in two’s–complement form.

Here is the strategy for that conversion.

    1.   Scan left to right, looking for a non–blank character.

    2.   Is this a minus sign?  Is this a digit?

Suppose that the label D has been defined as DS CL1, holding one character.
Here are some of the tests we run on the input.

CLI D,C‘ ’  Is this a blank character?

CLI D, C‘–’  Is it a minus sign?

CLI D, C‘0’   Compare to the digit zero.

CLI D, C‘9’   Compare to the digit nine.

To process as a digit, we require ‘0’ £ D £ ‘9’.

More on Comparison

Here, I give two incomplete and purposely ambiguous definitions.
Each declaration is missing the data type, so neither can assemble.

X1      DC  ‘123C’

X2      DC  ‘123D’

First compare these with the CLC (Compare Logical Character) instruction.

Here ‘1’ = ‘1’, ‘2’ = ‘2’, ‘3’ = ‘3’, and ‘C’ < ‘D’, so X1 < X2.

Now compare these with the CP (Compare Packed Decimal) instruction.

Here X1 is interpreted as the positive number 123,
and X2 is interpreted as the negative number –123.  So X1 > X2.

We shall see later that comparison of randomly chosen packed decimal fields
is not fully determined.  This is due to the decimal point not being stored.

Support for Encryption

The modern IBM z/Architecture has direct assembly language support for secret
key encryption using either the DEA (Data Encryption Algorithm) or the newer
AES (Advanced Encryption Standard).

The two instructions are

    KM       Cipher Message

    KMC     Cipher Message with Chaining

Each of these supports standard DES, triple–DES, and the three variants of AES.

The options for DES are invoked with function codes (predefined constants)
DEA and TDEA–192.

The options for AES are invoked with function codes AES–128, AES–192, or

Source:    IBM z/Architecture Principles of Operation


Slightly More on the DES

There are two terms used almost as synonyms

    DES     the Data Encryption Standard

    DEA    the Data Encryption Algorithm

Each refers to the standard and algorithm described by IBM in the 1970’s.

The DES was selected in 1976 by the U.S. National Bureau of Standards as the
official standard for encrypting data that were unclassified but sensitive.

Data that were considered candidates for DES included bank records, orders for
money transfer via the Internet, personnel records, etc.

Data that were not considered candidates for DES include anything classified by
the U.S. Department of Defense (SECRET, Top Secret, etc.).

From a cryptologic viewpoint, DES is secure.  However, it has been recently
compromised by the huge amount of computing power.

In January 1999, a distributed computation attack on a DES message was able to
retrieve the encryption key in 22 hours and 15 minutes.

Why Triple DES

Since the only known attack on DES involves brute force search, it can be made
acceptably secure by lengthening the key.

The original DES uses a 56–bit key.

Triple DES uses three such keys, effectively giving a key length of 168 bits.
Given current computer technology, a 168–bit key is secure against brute force.

The process for triple DES appears strange at first.

    1.   Encrypt with standard DES, using key K1.

    2.   Decrypt with standard DES, using key K2.

    3.   Encrypt with standard DES, using key K3.

The reason for this is that it allows a site using triple–DES to communicate with
a site using standard DES.

The solution is to demand that K2 = K1, so that the input to stage 3 is the
original message in plain text form.

There are some theoretical reasons not to use double–DES, but it is this practical
commercial reason that causes triple–DES to be favored.
