**Chapter 4 Appendix – CMOS Implementation of the Digital Gates**

In this appendix
to Chapter 3, we shall present the basics of the techniques used to fabricate
the basic digital gates for implementation of Boolean functions. This material builds on the discussion
“Review of Basic Electronics” found in Chapter 3, more particularly on the
discussion of resistors in series.

The term “CMOS”
stands for “Complementary metal–oxide semiconductor”, referencing a technology
in which MOS (metal–oxide semiconductor) transistors are used in complementary
pairs as basic building blocks of a circuit.
In a complementary transistor pair, one of the transistors is always
“turned on”, while the other is “turned off”.

In any circuit,
the output of a transistor depends on the input. In many common circuits, the transistor
output is an amplification of the input; this is the common usage in radios and
other audio devices. In the digital
world, transistors are used as on–off switches.
For a certain input, the transistor presents a very high resistance and
can be considered as “turned off”. For
other inputs, the transistor presents essentially no resistance and can be
considered as “turned on”.

The basic CMOS
transistor pair comprises a PMOS (Positive MOS) transistor connected to a NMOS
(Negative MOS) transistor. The inputs to
the two transistors are tied together.
An input that turns one of the pair on will turn the other of the pair
off.

In order to
examine this effect more closely, we first return to the basic series resistor
circuit in Chapter 3. Here we consider a
voltage source, with voltage designated by “E” driving a two resistor circuit,
and ask about the value of E_{2}, the voltage at point 2.

In general, E_{2}
= (E·R_{2})
/ (R_{1} + R_{2}), the value being somewhere between the full
voltage and ground voltage, defined to be zero.

If R_{1}
= 0 and R_{2} ≠ 0, then E_{2} = E, the full voltage.

If R_{1}
≠ 0 and R_{2} = 0, then E_{2} = 0.

If R_{1}
= 0 and R_{2} = 0, then there is a short circuit, and the battery burns
up. This is not a desirable condition.

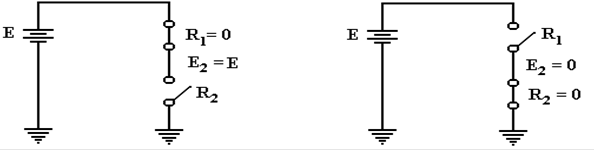

The basic idea
behind these circuits can be seen in the following circuit, which is an
adaptation of the one just above.

When the top
switch is closed (R_{1} = 0) and the bottom switch is open (R_{2}
≠ 0), the voltage E_{2} is the full voltage. When the top is open and the bottom closed, E_{2}
= 0.

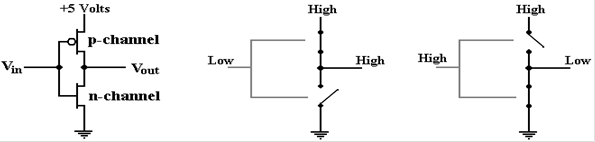

We now examine a
CMOS implementation of the NOT gate.
This has one pair of complementary transistors, the PMOS (labeled
“p–channel”) and the NMOS

(labeled “n–channel”). Note the behavior
of the pair of transistors as the input voltage V_{in} is changed between
+5 volts (high) and 0 volts (low).

When V_{in}
is low (0 volts, or logic 0), the output V_{out}
is high (+5 volts, or logic 1).

When V_{in}
is high (+5 volts, or logic 1), the output V_{out}
is low (0 volts, or logic 0).

Viewed as a
logic signal, the output is the complement of the input. This is a NOT gate.

In order to
fabricate the AND and OR gates, we must first do NAND
and NOR. We then

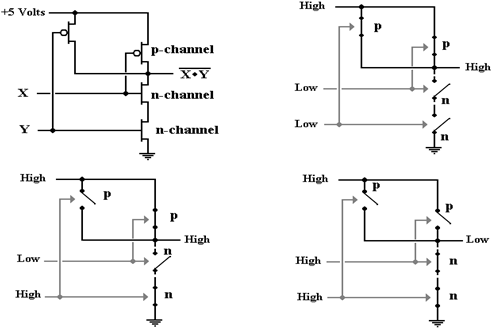

use the fact that AND = NOT (NAND) and OR = NOT (NOR). Here is the NAND gate.

Note that the
output is low (logic 0) only when both of the inputs are high. If one or more of the inputs is low (logic
0), then one or more of the NMOS transistors (labeled “n–channel”) will be
non–conductive, acting as an open switch, and the output is high (logic 1).

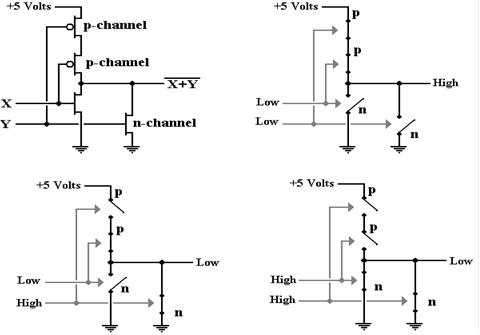

Here is the CMOS
implementation of the NOR gate.

Note that the
output is high (logic 1) only when both of the inputs are low (logic 0).

If either input is high (logic 1), then the output is low (logic 0). This is a NOR gate.

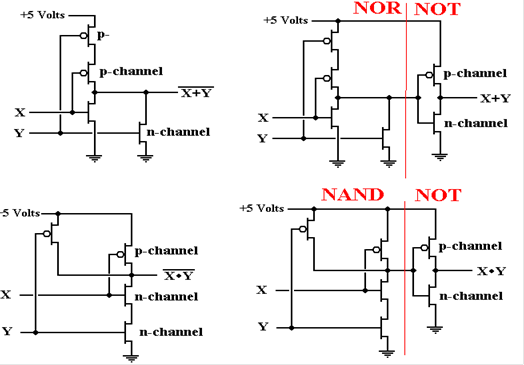

Here are the
CMOS implementations of the AND (as NOT(NAND)), and OR

(as NOT(NOR)) gates.
