**Logical
Adjacency**

**K–Maps
**are a
standard method for simplification of Boolean expressions.

The difference between K–Maps and Quine–McCluskey (Q–M) is that

K–M is well suited to manual solutions
of small problems, and

Q–M lends itself to automated solutions.

**Logical
adjacency** is the basis for all
Boolean simplification methods.

The K–Map
approach is a manual procedure that transforms logical adjacency

into physical adjacency on the paper.
Simplification is done by inspection.

The key
idea behind logical adjacency is expressed in the following

simplifications of Boolean expressions.

X·Y + X·_{} = X·(Y + _{}) = X·1 = X

(X + Y)·(X + _{}) = X·X + X·_{} + Y·X +Y·_{}

=
X·X + X·_{} + X·Y + 0

=
X·X + X·_{} + X·Y

=
X + X·(_{} + Y) = X·1 = X + X =
X

**Logical
Adjacency (Part 2)**

Two
Boolean terms are said to be** logically adjacent** when they contain the

same variables and differ in the form of exactly one variable.

Put
another way, only one literal is different; a variable appears negated in one
term

and is not negated in the other term.
All other variables appear in the same way.

Consider
the following lists of terms.

List 1 X _{}

List 2 X·Y X·_{} _{}·_{} _{}·Y

List 3 (X
+ Y) (X + _{}) (_{} + _{}) (_{} + Y)

In
each of the lists, each term is logically adjacent not only to the term before
it

but also to the term following.

In particular X·Y is
adjacent to both X·_{} and _{}·Y

(X
+ Y) is adjacent to both (X + _{}) and (_{} + Y).

In other
words, the adjacency list is “circular”; the first item follows the last one.

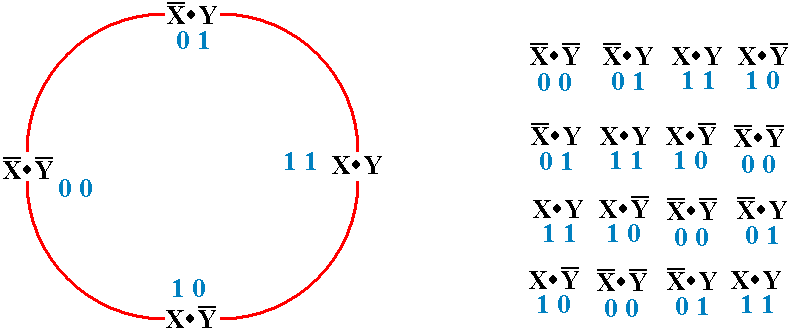

**Logical
Adjacency (Part 3)**

Here is
the “circle” for SOP terms.

To
produce a valid ordering, start at any part of the circle and read either
clockwise

or counter–clockwise. Four valid
orderings are shown at the right.

**K–Maps for
Small Variable Count: 2, 3, and 4**

Some
textbooks show K–Maps for 5 and 6 variables.

These are
so complex as to be useless for manual computation. In those

cases the Quine–McCluskey
method is used.

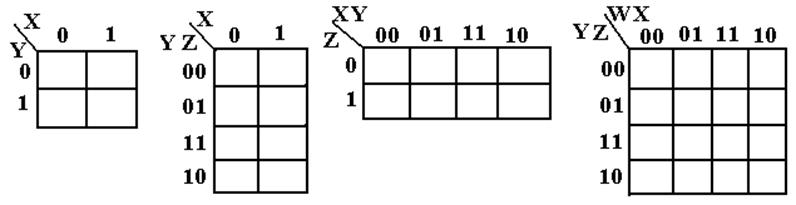

K–maps
are shown as rectangles. Here are K–maps
for 2, 3, and 4 variables.

Note
the structure of the list in cases where either a row or column corresponds

to two variables: 00, 01, 11, 10.

These are
in the form of a Gray code, in which each term differs in exactly one bit

from the term preceding it and following it.

The Gray
code structure causes logical adjacency to be seen as physical adjacency.

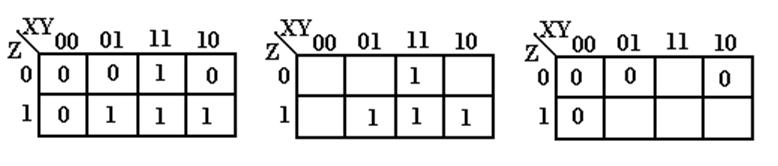

**The
“Complete” K–Map and Its Common Forms**

Every
entry in a K–map is either a 0 or a 1.
These are the two values that

a Boolean function can assume.

While a
“Complete” K–map has all entries filled, all common forms have only a

subset filled. Either
the 1’s are placed and the 0’s omitted, or vice–versa.

The three
K–maps shown above contain identical information.

The
second K–map shows the entries with values equal to 1.

Those entries not shown have value 0.

The third
K–map shows the entries with values equal to 0.

Those entries not shown have value 1.

**Creating a
K–Map**

The
standard K–map is used to simplify Boolean expressions in canonical form;

each term has exactly one literal for every Boolean variable.

The
method can be expanded to Boolean expressions not in canonical form.

__SOP Expressions__

Place a
“1” in the K–Map for every term in the expression. The positions not

filled with a “1” are assumed to have a “0”.

__POS Expressions__

Place a “0”
in the K–Map for every term in the expression.
The positions not

filled with a “0” are assumed to have a “1”.

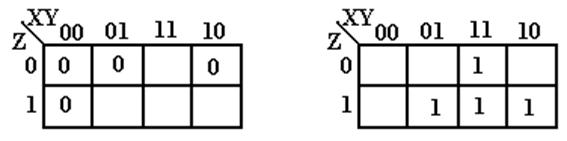

** POS
K–Map SOP
K–Map**

**Locating
Terms for Sum of Product Expressions**

In SOP,
each term is to be represented by a “1” in the K–map.

Where
should that term be put?

Apply the
“SOP Copy Rule” to each of the terms.

1. Write
the variables in a standard uniform order.

2. Replace
each complemented variable with a 0

Replace each plain
variable with a 1.

Consider
F(X, Y, Z) the term _{}·_{}·_{} corresponds to **0 0 0**

the term _{}·**Y****·****Z** corresponds to **0 1 1**

the term **X****·**_{}**·****Z** corresponds
to **1 0 1**

the term **X****·****Y****·**_{} corresponds to **1 1 0**

the term **X****·****Y****·****Z **corresponds to **1 1 1**

**Locating the
SOP Terms (Part 2)**

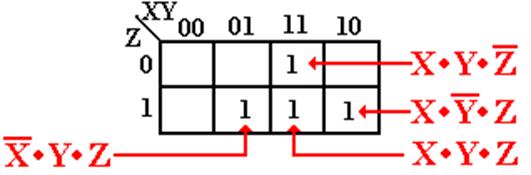

Let us
examine the SOP expression

F(X, Y, Z) = _{}·**Y****·****Z + X****·**_{}**·****Z + X****·****Y****·**_{} + **X****·****Y****·****Z**

We place
four “1”, one for each of the terms.

For _{}·**Y****·****Z**, the “1”
is placed at X = 0, Y = 1, Z = 1.

For **X****·**_{}**·****Z**, the “1” is placed at X = 1, Y = 0, Z = 1.

For **X****·****Y****·**_{}, the “1” is placed at X = 1, Y = 1, Z = 0.

For **X****·****Y****·****Z**, the “1” is placed at X = 1, Y = 1, Z = 1.

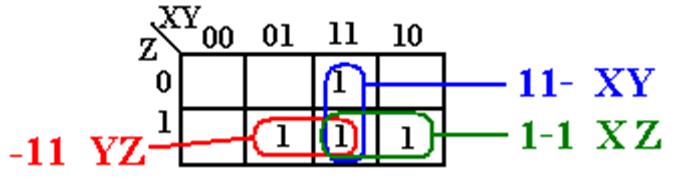

**Combining
the SOP Terms**

Terms are
combined into rectangles containing 2, 4, 8, or 16 squares.

Valid
combinations: 2 by 1, 1 by 2

4 by 1, 2 by 2, 1 by 4

8
by 1, 4 by 2, 2 by 4, 1 by 8, etc.

Terms can
be combined if the squares are adjacent either vertically or horizontally.

Any term
can be a part of more than one combination.

The terms
_{}·**Y****·****Z **and** X****·****Y****·****Z, **represented as 011 and 111, combine to –11, or **Y****·****Z**

The terms
**X****·**_{}**·****Z **and** X****·****Y****·****Z, **represented
as 101 and 111, combine to 1–1, or **X****·****Z**

The terms
**X****·****Y****·**_{}** **and** X****·****Y****·****Z, **represented as 110 and 111, combine to 11–, or **X****·****Y**

F(X, Y, Z) = **X****·****Y + X****·****Z + Y****·****Z. **Note
111 is used three times.

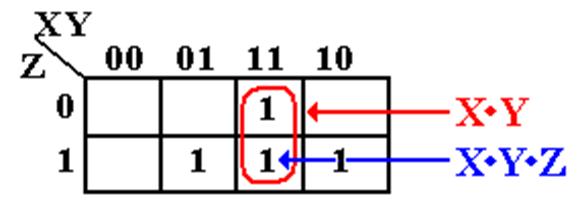

**Adjacency
and Logical Inclusion**

Take
another look at the above K–Map, with two of the simplifications removed.

In terms
of logical adjacency, the term X·Y covers the term X·Y·Z.

In terms
of standard expressions, the term X·Y·Z includes the term X·Y.

In
algebraic terms, the term X·Y stands for the sum term **X****·****Y****·**_{} + X·Y·Z, so

that X·Y + X·Y·Z is the same as **X****·****Y****·**_{} + X·Y·Z + X·Y·Z, which is obviously

the same as **X****·****Y****·**_{} + X·Y·Z. The last is equivalent to X·Y.

**Simplification
Using Algebra Alone**

The
straight algebraic simplification illustrates the K–Map approach.

It uses two basic Boolean identities: for
any **X, X + X = X**.

for
any **X**, _{} **+ X = 1**.

Given
F(X, Y, Z) = _{}·**Y****·****Z + X****·**_{}**·****Z + X****·****Y****·**_{} + **X****·****Y****·****Z**

This is
F(X, Y, Z) = _{}·**Y****·****Z** + **X****·****Y****·****Z **

** +
X****·**_{}**·****Z** + **X****·****Y****·****Z **

** +
X****·****Y****·**_{} + **X****·****Y****·****Z**

This is
F(X, Y, Z) = (_{} + **X**)·**Y****·****Z**

** +
X****·****(**_{} + **Y**)**·****Z**

** +
X****·****Y****·****(**_{} + **Z**)

This is
F(X, Y, Z) = **Y****·****Z + X****·****Z + X****·****Y,**

or F(X, Y, Z) = **X****·****Y + X****·****Z + Y****·****Z.**

**Locating
Terms for Product of Sums Expressions**

In POS,
each term is to be represented by a “0” in the K–map.

Where
should that term be put?

Apply the
“POS Copy Rule” to each of the terms.

1. Write
the variables in a standard uniform order.

2. Replace
each complemented variable with a 1

Replace each plain
variable with a 0.

Consider
F(X, Y, Z) the term **X+Y+Z **corresponds
to 0 0 0

the term **X + Y** + _{} corresponds to 0 0 1

the term **X + **_{}** + Z** corresponds
to 0 1 0

the term _{} **+ Y + Z** corresponds to 1 0 0

the term _{}+_{}+_{} corresponds to
1 1 1

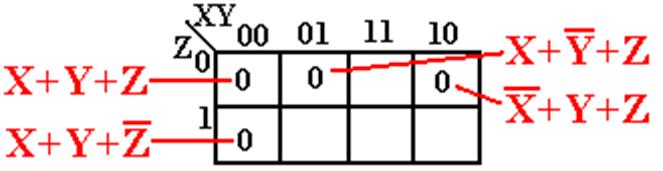

**Locating the
POS Terms (Part 2)**

Let us examine
the POS expression

**F(X,
Y, Z) = (X + Y + Z)****·****(X + Y + _{})**

We place
four “1”, one for each of the terms.

For **(X + Y + Z)**, the “0” is placed at X =
0, Y = 0, Z = 0.

For **(X + Y + **_{}**)**, the “0” is
placed at X = 0, Y = 0, Z = 1.

For **(X + **_{}** + Z)**, the “0” is placed at X = 0, Y = 1, Z
= 0.

For **(**_{}** + Y + Z)**, the “0”
is placed at X = 1, Y = 0, Z = 0.

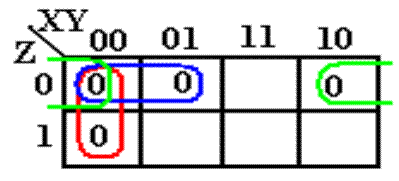

**Example
K–Map on 3 Variables**

Consider
the K–map shown above. It can be shown
to represent the Boolean

expression **F(X, Y, Z) = (X + Y + Z)**·**(X + _{} + Z)**·

This is a
K–map representation of a POS (Product of Sums) expression, also

called an expression in Conjunctive Normal Form.

The K–map
procedure works by grouping adjacent squares.
Here are the adjacencies:

000 and 010 group
to form 0–0 representing the term (X +
Z)

100 and 000 group
to form –00 representing the term (Y +
Z)

000 and 001 group
to form 00– representing the term (X +
Y)

The
expression is F(X, Y, Z) = (X + Y)·(X + Z)·(Y + Z)

**Handling
Non–Canonical Terms**

Suppose
we have **F(X, Y, Z) = (X + Y) (X + _{} + Z)(_{} + Y + Z)**

How do we handle this?

For **(X + **_{}** + Z)**, denoted as **010**, the “0” is placed at X = 0, Y = 1, Z = 0.

For **(**_{}** + Y + Z)**, denoted
as **100**, the “0” is placed at X = 1, Y
= 0, Z = 0.

But what
about **(X + Y), **which is denoted as** 00–?**

The
answer is to view the term as equivalent to the two terms

**(X + Y + Z)**, denoted as **000**

and **(X
+ Y + _{})**, denoted as

For the
term (X + Y) we would fill boxes 000 and 001 each with a “0”.

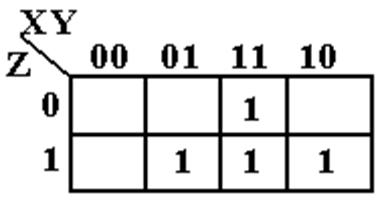

**Another
Simplification for SOP**

Consider
the Boolean Expression F(X, Y, Z) = **S**(3, 5, 6, 7).

The use
of a K–Map to simplify this is simple.

First
replace the decimal numbers by binary.

We have **S**(011, 101, 110, 111). Each of the numbers marks a cell in the
K–Map.

We have
seen and solved this before, so we move on.

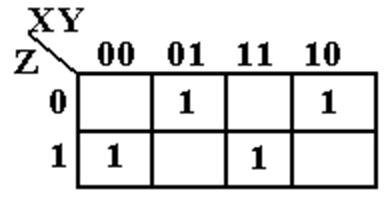

**Still Another Try for SOP**

Here is
another function to consider. F(X, Y, Z)
= **S**(1, 2, 4, 7).

This can
be written as **S**(001, 010, 100, 111).

Here is
the K–Map.

There are
no logical adjacencies. The function
cannot be simplified.

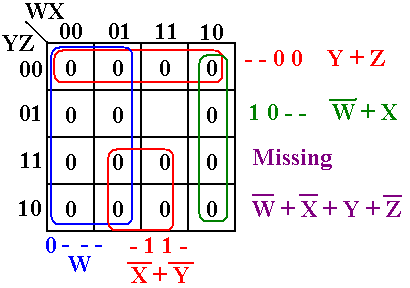

**A K–Map for
CNF Satisfiability**

Consider
the Boolean expression B_{3} = (_{} + X)·W·(_{} + _{})·(Y + Z).

Is this satisfiable? Here is the K–Map
generated for this expression.

Note that
there is one square in the K–map that is not covered by these expressions.

This corresponds to the term (_{} + _{} +Y +
_{}). The assignments
that make this

missing term equal 0 are W = 1, X = 1, Y = 0, and Z = 1.

For these
values, B_{3} = (_{} + 1)·1·(_{} + _{})·(0 + 1) = 1.

=
(0 + 1)·1·(0 + 1)·(0 + 1) = 1. B_{3}
is satisfiable.

**An Obvious
Comment on the Above**

Consider
again the expression B_{3} = (_{} + X)·W·(_{} + _{})·(Y + Z).

It should
be obvious that if W = 0, then B_{3} = 0.

The only
way to get B_{3} = 1 demands the assignment W = 1.

Assuming
W = 1, we have B_{3} = (_{} + X)·1·(_{} + _{})·(Y + Z)

=
(0 + X)·1·(_{} + _{})·(Y + Z)

=
X·1·(_{} + _{})·(Y + Z)

=
X·(_{} + _{})·(Y + Z)

=
(X·_{} + X·_{})·(Y + Z)

=
(0 + X·_{})·(Y + Z)

=
X·_{}·(Y + Z)

=
X·_{}·Y + X·_{}·Z

=
X·0 + X·_{}·Z

=
X·_{}·Z

We now
have W = 1, X = 1, Y = 0, and Z = 1.

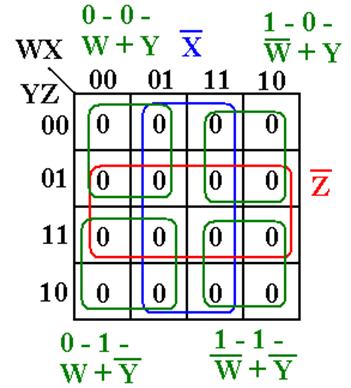

**Another
K–Map for SAT**

Consider
the Boolean expression

B_{4} = (_{} + _{})·(_{} + Y)·(W + _{})·(W + Y)·_{}·_{}

Here is
the K–Map generated for this expression.

As a
K–Map, this simplifies to B_{4}(W, X, Y, Z) =
0; it is not satisfiable.

**More
Comments on the Second Example**

Note
again the expression B_{4} = (_{} + _{})·(_{} + Y)·(W + _{})·(W + Y)·_{}·_{}.

This can
be true only if X = 0 and Z = 0.

Assuming
that X = 0 and Z = 0, we have B_{4} = (_{} + _{})·(_{} + Y)·(W + _{})·(W + Y).

This is a
Canonical POS expression on the two variables W and Y.

It has 4
= 2^{2} terms; it cannot be satisfiable.

(In
general terms, it has 2^{N} terms for N variables.)

Here
is my version of the result on Circuit Satisfiability

**Lemma:** Let B be a CNF Boolean expression over N
Boolean variables.

B is satisfiable if and
only if it cannot be minimized

by any valid
simplification method to B = 0 identically.
